Exam Room Section

Exam Room Section

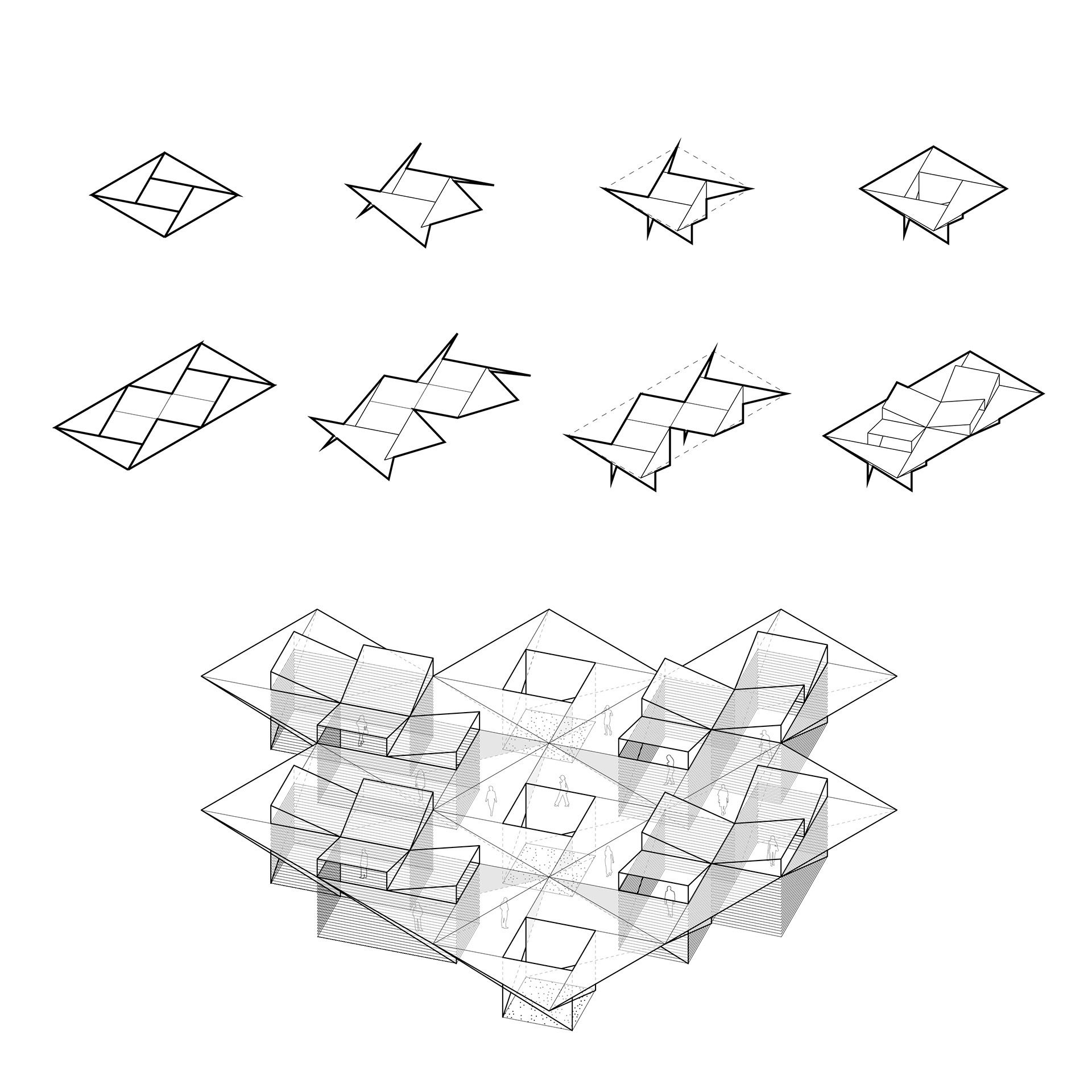

Pattern to Space

Pattern to Space

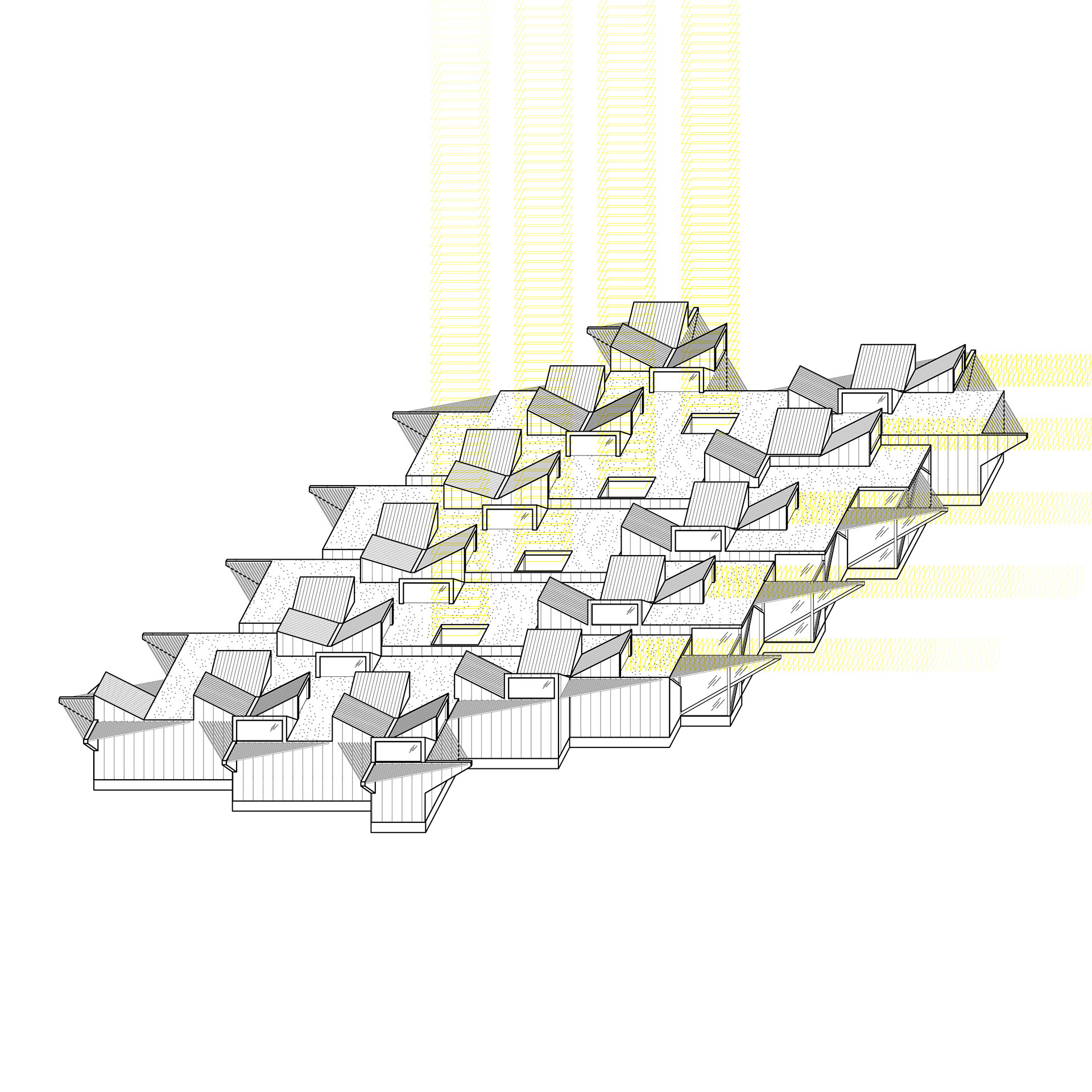

Building Axonometric

Worm's Eye View

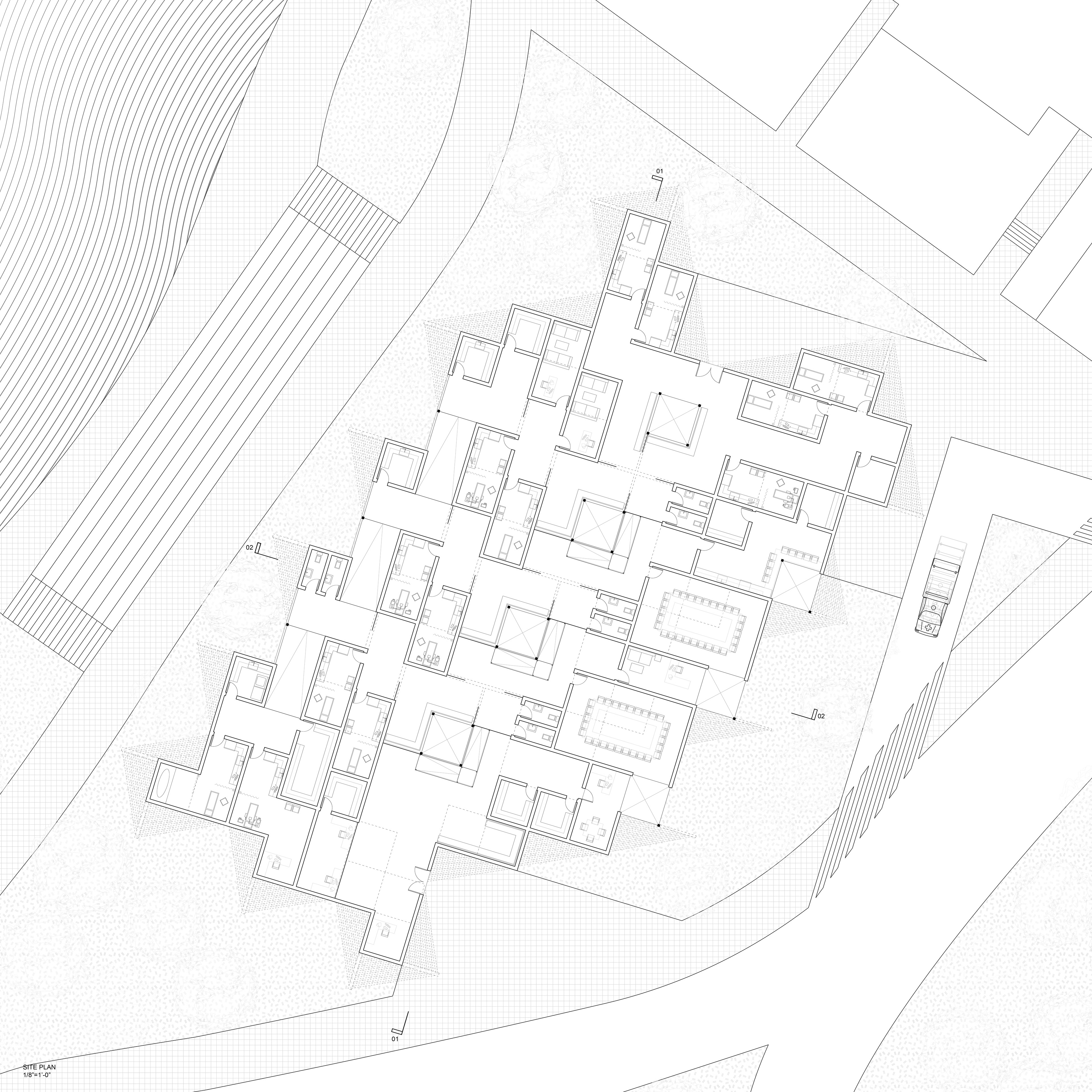

Site Plan

Section 01

Section 02

Waiting Space

Circulation

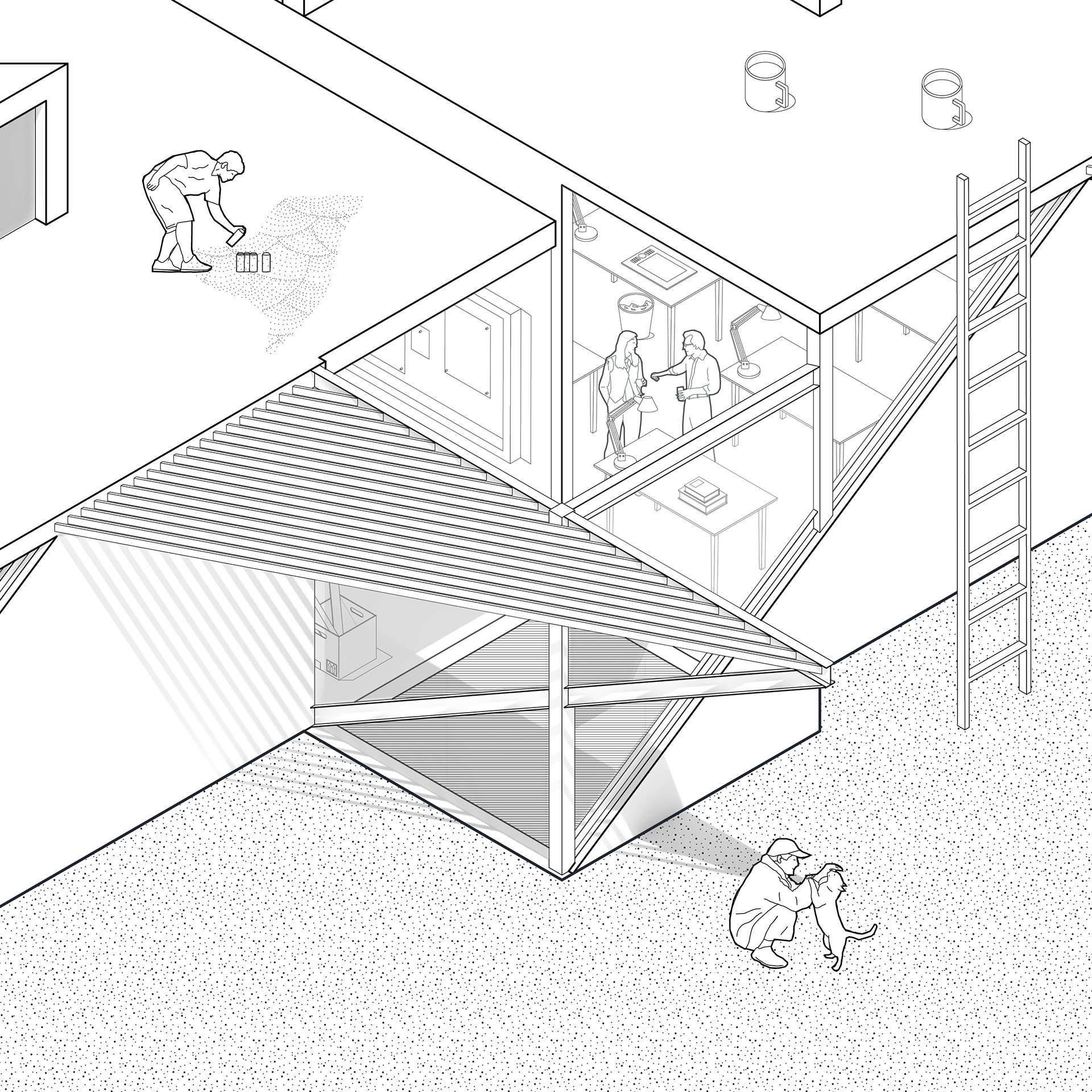

Partial Exterior Axonometric

This health clinic, located on Roosevelt Island, was a study of pattern to space. The study began with working from a 2d pattern and folding its edges in an origami like fashion to create a three dimensional space. This led to a structure with courtyards for waiting spaces, triangular partitions to divide program, and sawtooth skylights to bring natural light into exam rooms of the clinic.
Site Plan
Section 01
Section 02
